D35-45U 700c gravel bike 35mm internal width 45mm deep tubeless carbon rim - 460g
Gravel | 700c | 45mm - 70mm Tires | Symmetric | Hook & Hookless | Rim
Product Item: D35-45U 700c gravel bike 35mm internal width 45mm deep tubeless carbon rim - 460g
Built for speed and durability on rough terrain, this gravel carbon rim series features a 35mm internal / 44mm external width with a robust 4.5mm wall thickness — delivering the wide-tyre aerodynamics and impact resistance. The generous internal width optimises tyre profile for 45–60mm gravel tyres, while the thick, reinforced sidewalls handle low pressures and sharp hits with confidence.
Rim Specs
| Rim Model | D35-45U |
| Material | Toray T700 & T800 premium carbon fiber |
| Size | 29" / 700C (ETRTO 622mm) |
| Intended Use | Gravel / CX |
| Bead Type | Hook |
| Tubeless Ready | Yes |

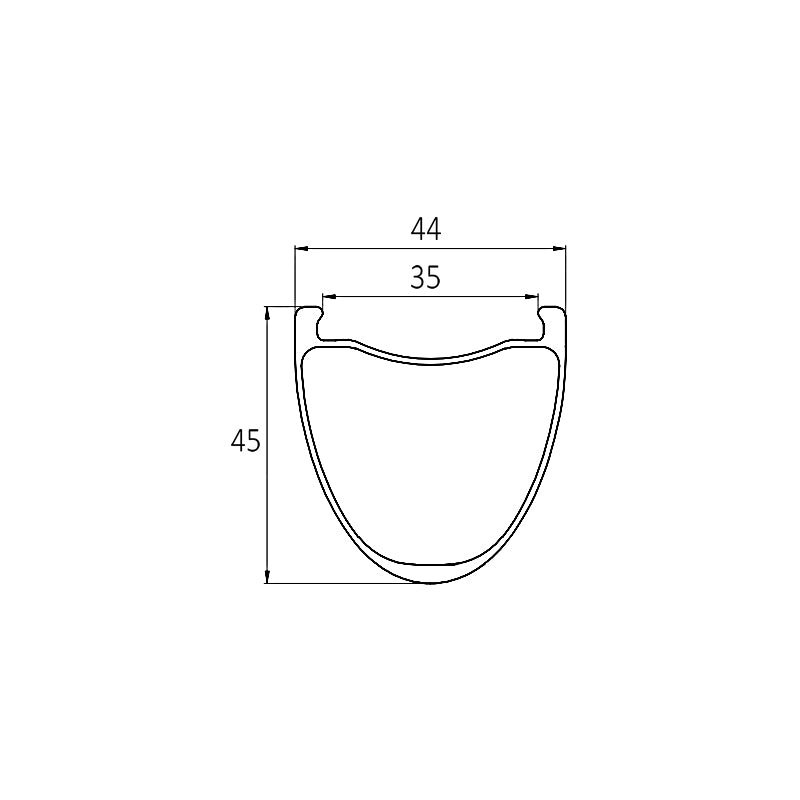

| Inner/Outer Width | 35mm / 44mm |
| Depth | 45mm |
| ERD | 555mm (including nipple head dimension) |
| Weight | 460g±20 |
| Offset | 0mm (symmetric) |
|
Max Cyclist Weight (on flat ground) |
125kgs/ 276lbs |
| Spoke Hole Angle | ±7° |
| Spoke Tension | 110~130kgf (recommended) |
| Tire Pressure (with 45C) | 55psi / 3.79bar (recommended max) |
| Tire Size | 45C ~70C (recommended) |
| Warranty | 5 years |
If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
