AM3235 - 32er mtb AM 35mm internal width 30mm deep carbon rim -530g
Trail | All Mountain | 32er | 2.3" - 2.75" Tires | Symmetric | Rim

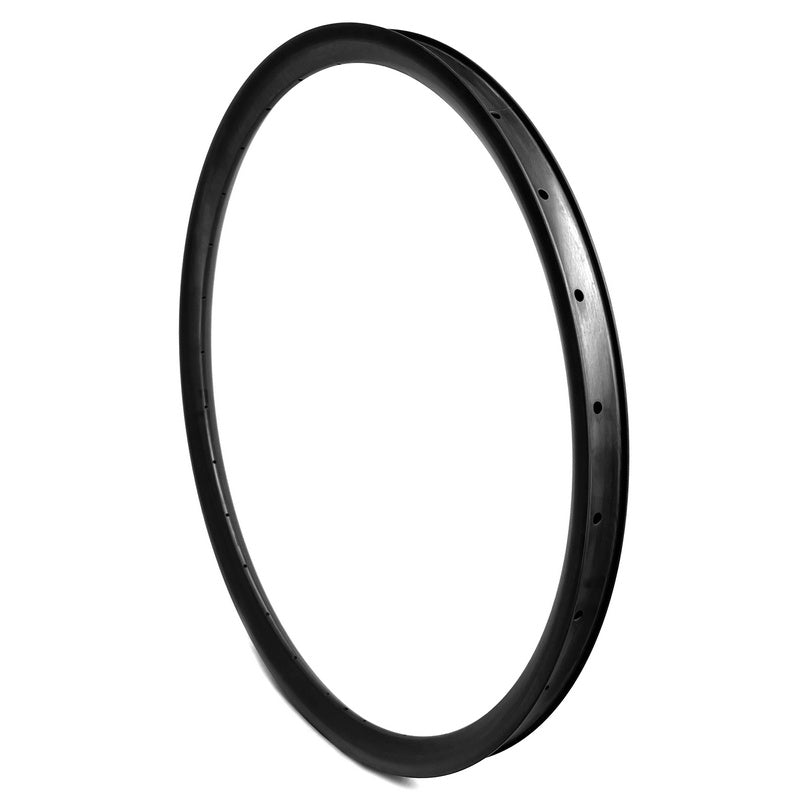

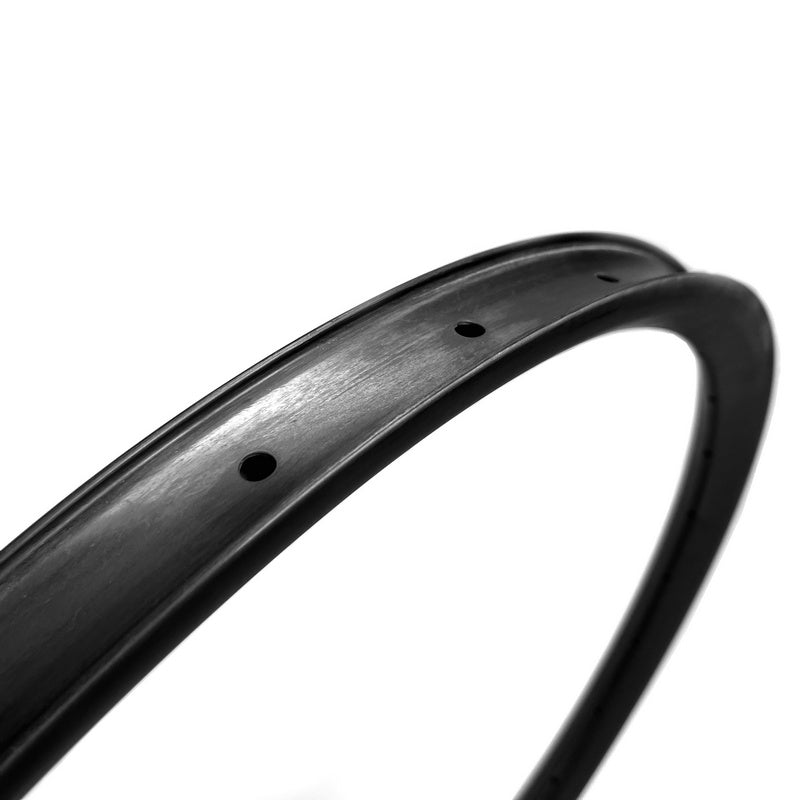

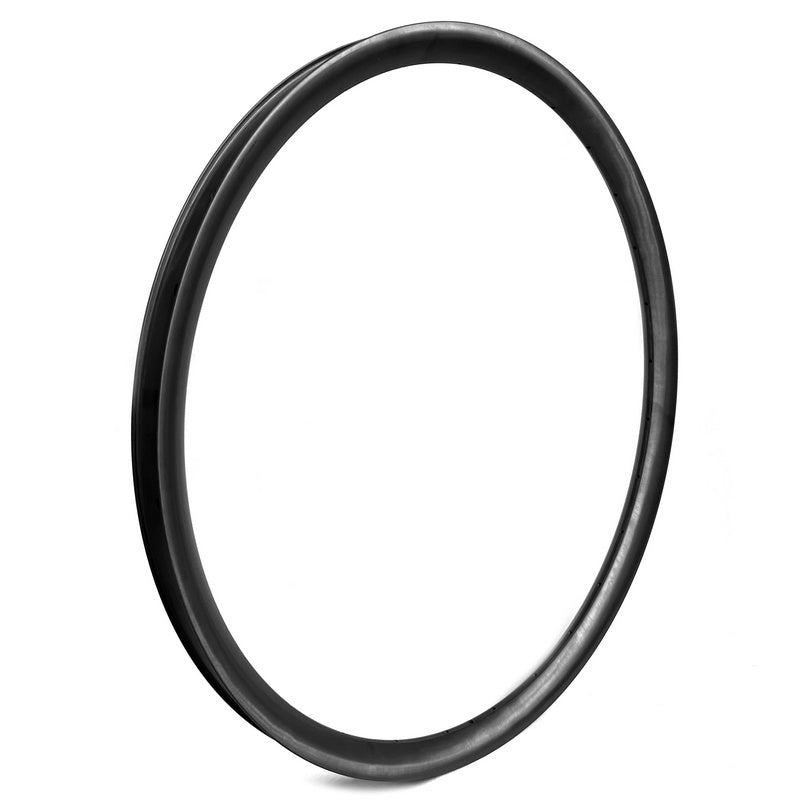

Product Item: AM3235 - 32er mtb AM 35mm internal width 30mm deep carbon rim -530g
Engineered for the unique demands of 32-inch mountain bikes, the XC3235 redefines performance in the XC and Marathon categories. Featuring a 35mm internal width, this rim provides exceptional support for modern wide tires (2.4"–2.6"), ensuring superior traction and stability on loose climbs and technical descents without the sluggish feel of heavier wheels.
Rim Specs
| Rim Model | AM3235 |
| Material | Toray T700 & T800 premium carbon fiber |
| Size | 32" |
| Intended Use | Trail / All Mountain |
| Bead Type | Hook / Hookless |
| Tubeless Ready | Yes |

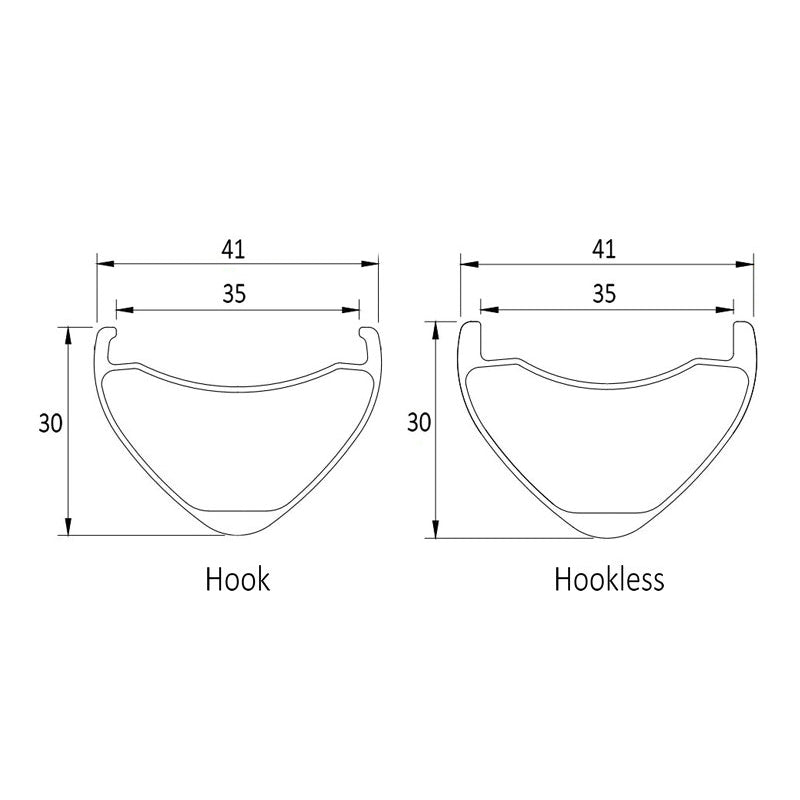

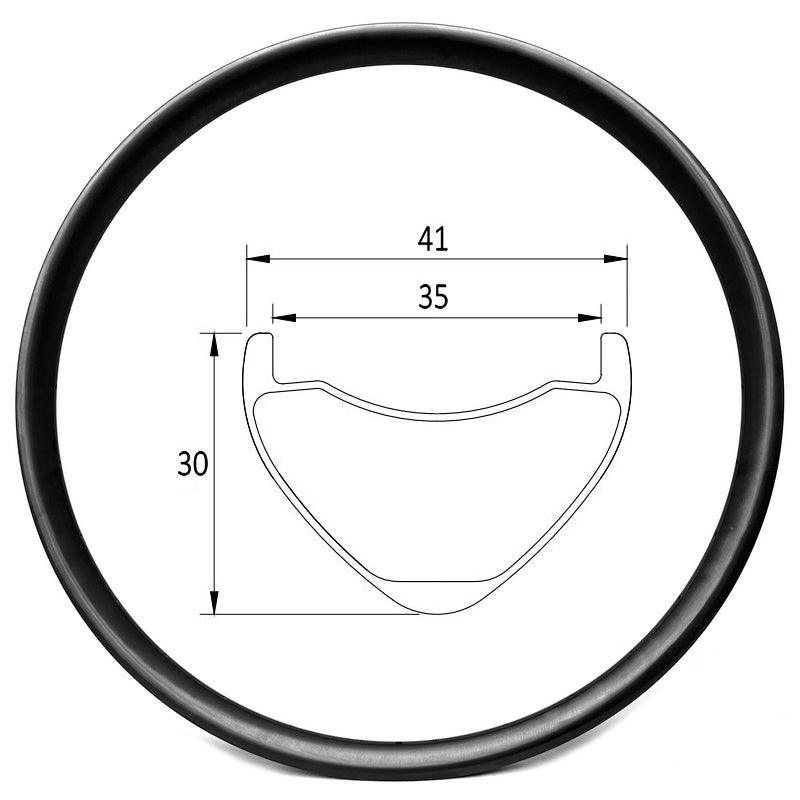

| Inner/Outer Width | 35mm/41mm |
| Depth | 30mm |
| ERD | 649mm (including nipple head dimension) |
| Weight | 530g±20 |
| Offset | 0mm (symmetric) |
|
Max Cyclist Weight (on flat ground) |
130kgs / 287lbs |
| Spoke Hole Angle | ±7° |
| Spoke Tension | 110~130kgf (recommended) |
| Tire Pressure | 55psi / 3.8bar (recommended max) |
| Tire Size | 2.3" ~ 2.75" (recommended) |
| Warranty | 5 years |
If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
