D24-35X 650b asymmetric 24mm internal width 35mm deep clincher carbon rim - 360g
Cyclocross | Gravel | 27.5/650b | 28mm - 50mm Tires | Asymmetric | Rim
Product Item: D24-35X 650b asymmetric 24mm internal width 35mm deep clincher rim - 360g
Asymmetric 2.5mm offset 35mm deep carbon clincher rim for lightweight 27.5 inch & 650b gravel bike, build into stiff, strong and durable gravel or cyclocross bike disc brake carbon wheels.
Rim Specs
| Rim Model | D24-35X (GCX35) |
| Material | Toray T700 & T800 premium carbon fiber |
| Size | 27.5" / 650b |
| Intended Use | Gravel / CX |
| Bead Type | Clincher |
| Tubeless Ready | Yes |

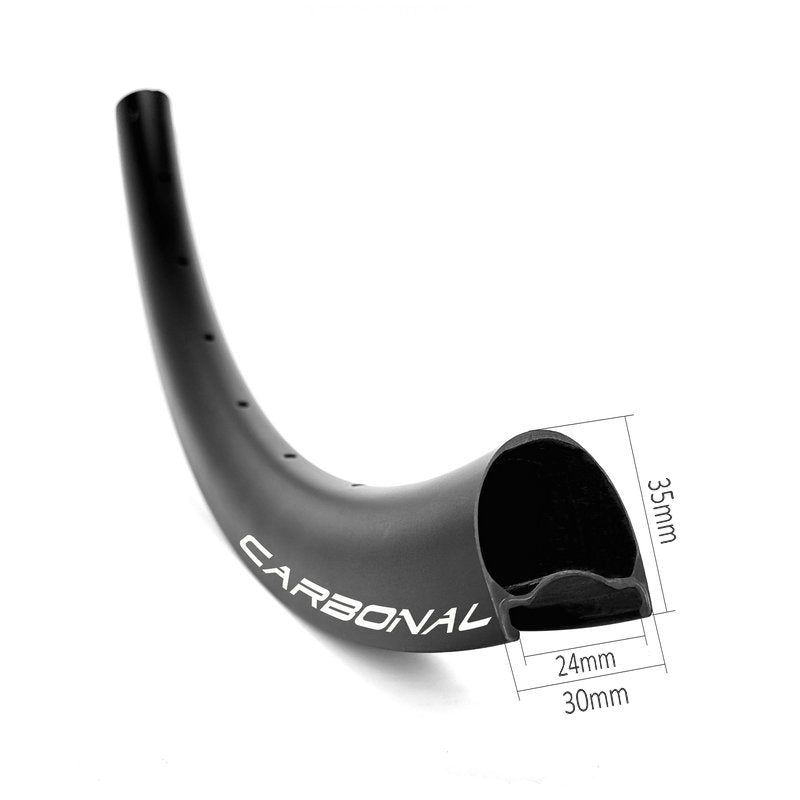

| Inner/Outer Width | 24mm/30mm |
| Depth | 35mm |
| ERD | 537mm (including nipple head dimension) |
| Weight | 360g±15 |
| Offset | 2.5mm (asymmetric) |
|
Max Cyclist Weight (on flat ground) |
120kgs / 265lbs |
| Spoke Hole Angle | ±7° |
| Spoke Tension | 110~130kgf (recommended) |
| Tire Pressure (with 28C) | 80psi / 5.52bar (recommended max) |
| Tire Size | 28C ~ 50C (recommended) |
| Warranty | 5 years |
