carbon mountain bike rim of 26mm wide int 32 ext 25 deep, 29 inch carbon rim asymmetric for cross-country and trail

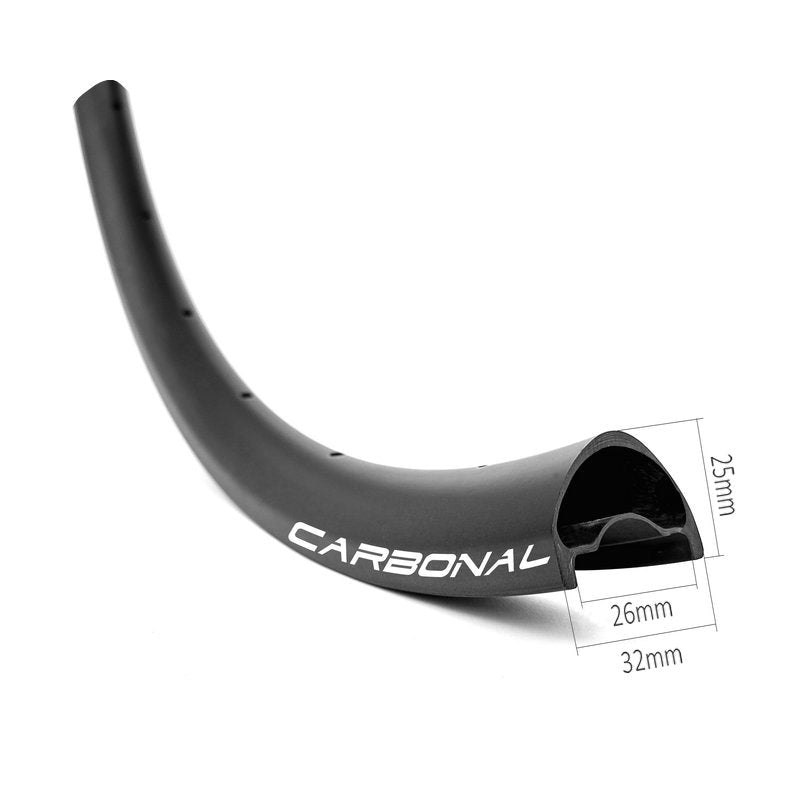

29er mtb rim asymmetric 32mm wide carbon rim profile
asymmetric carbon mtb rims 29er

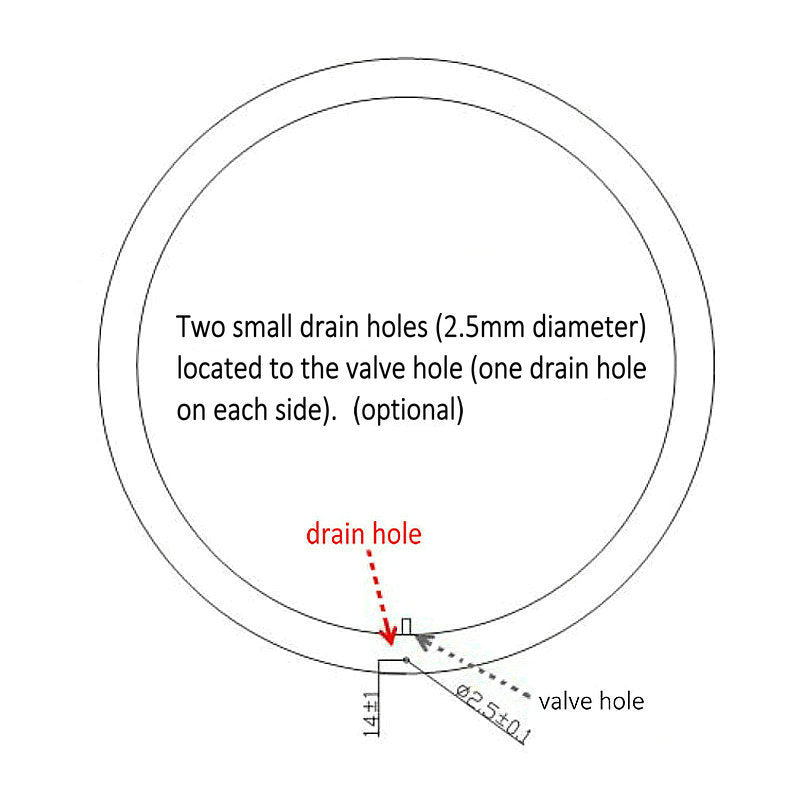

Two small drain holes (2.5mm diameter) located to the valve hole (one drain hole on each side of rim). (optional)

TR926X - 29er mtb 26mm internal width 25mm deep asymmetric carbon rim - 390g

Product Item: TR926X - 29er mtb 26mm internal width 25mm deep asymmetric carbon rim - 390g

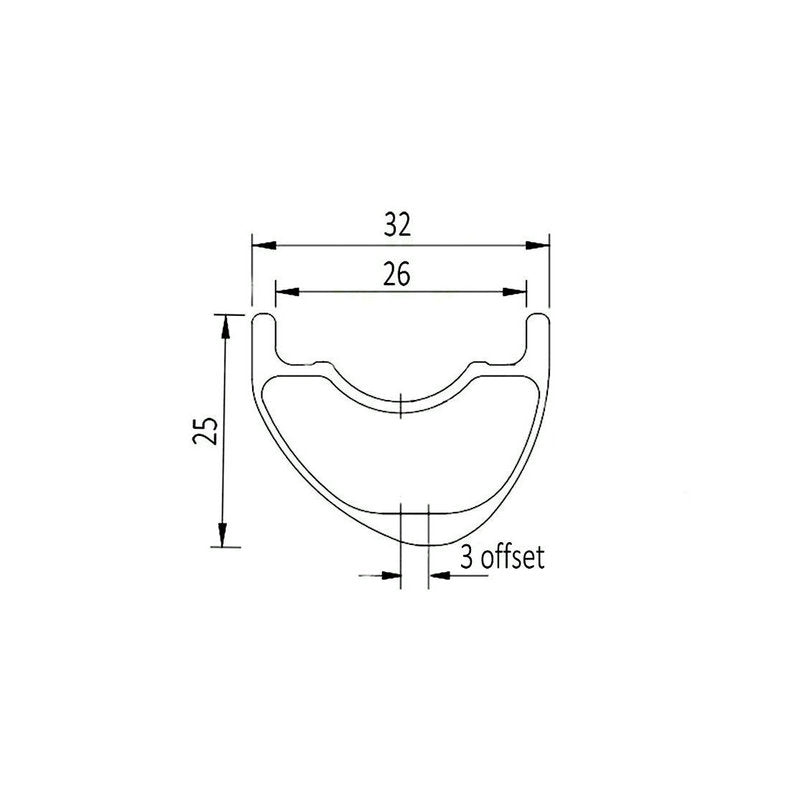

29 inch carbon rim 26mm internal width and asymmetric 3mm offset profile, the unique asymmetric profile balance drive and non-drive side spoke tension to create a more durable mountain bike wheel.

Rim Specs

Rim Model TR926X
Material Toray T700 & T800 premium carbon fiber
Size 29"
Intended Use XC / Trail
Bead Type Hookless
Tubeless Ready Yes
Inner/Outer Width 26mm/32mm
Depth 25mm
ERD 595mm (including nipple head dimension)
Weight 390g±15
Offset 3mm (asymmetric)
Max Cyclist Weight (on flat ground)
 115kgs / 254lbs
Spoke Hole Angle ±7°
Spoke Tension 110~130kgf (recommended)
Tire Pressure 60psi / 4.14bar (recommended max)
Tire Size 2.0" ~ 2.4" (recommended)
Warranty 5 years
     If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.

    Customer Reviews

    Based on 1 review
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    T
    Torben
    Great rims at a fair price

    I built up these wheels with a pair of Shimano XTR hubs, Sapim D-light spokes and brass nipples. Total wheelset weight: 1,572 g. After 1.5 years mostly single trail ride they still spin and look like new. The purchase went seamless with some good customer support along the way to pick the right rims for my needs. However, the shipping took longer than I expected but I was able to track the package all the way. Highly recommended!
