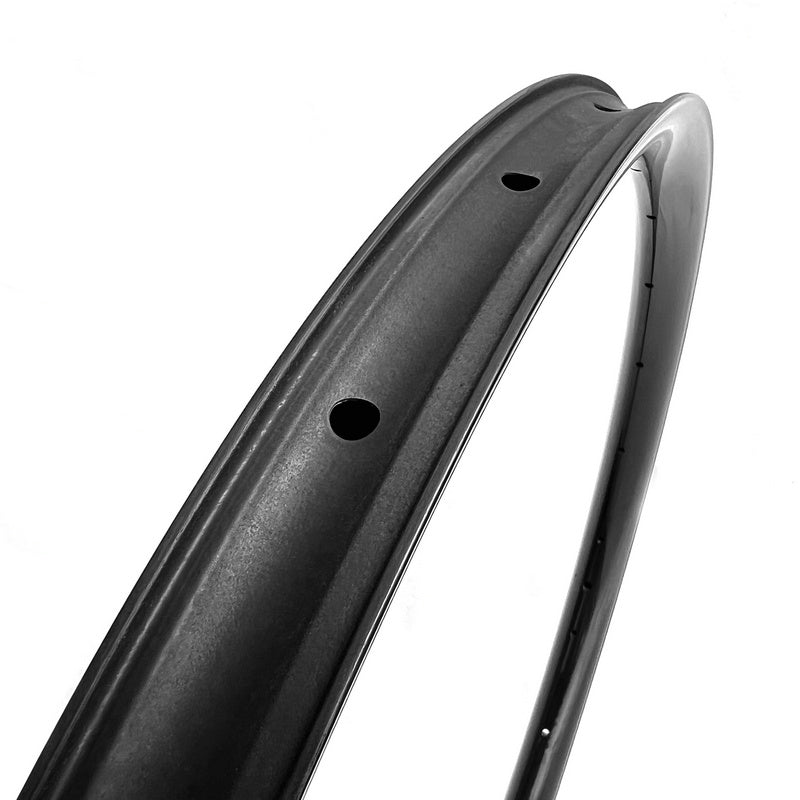

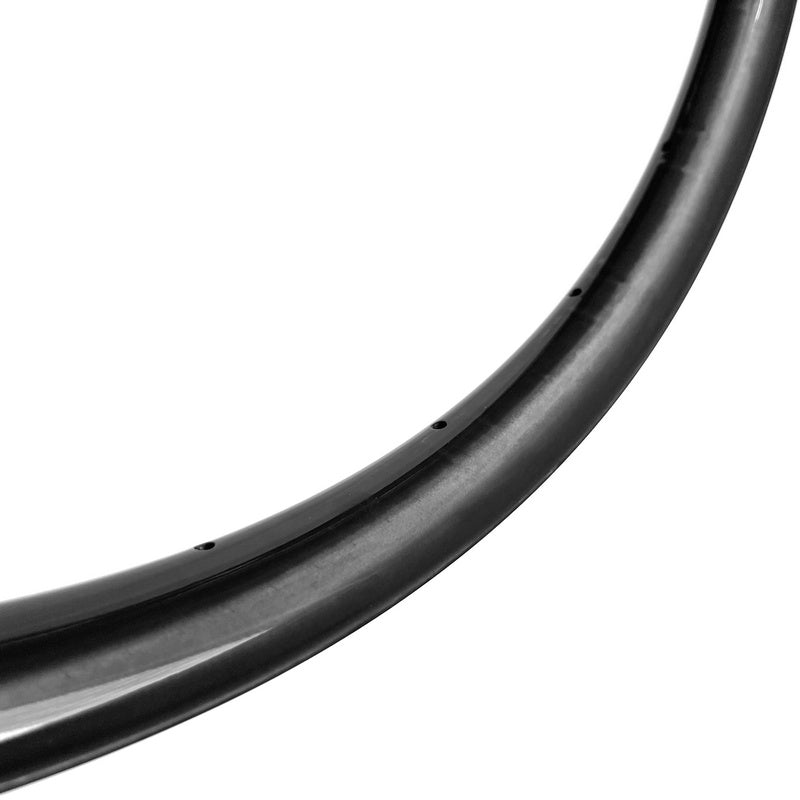

XC930X-24 - 29er mtb 30mm internal width 24mm deep asymmetric carbon rim - 280g/300g
Cross Country | Down Country | 29er | 2.1" - 2.7" Tires | Asymmetric | Rim
Product Item: XC930X - 29er mtb 30mm internal width 24mm deep asymmetric carbon rim - 280g/300g
Wide 30mm internal width and 3mm offset asymmetrical rim profile, super light at 280g/300g, suitable for XC rider who is looking for wide but super lightweight 29er XC bike carbon wheelset.
Rim Specs
| Rim Model | XC930X-24 |
| Material | Toray T800 & T1000 premium carbon fiber |
| Size | 29" |
| Use | XC / DC |
| Type | Hookless |
| Tubeless Ready | Yes |
| Inner/Outer Width | 30mm/36mm |
| Depth | 24mm |
| ERD | 597mm (including nipple head dimension) |
| Weight | 280g (SL) / 300g (Standard) |
| Offset | 3mm (asymmetric) |
| Max Cyclist Weight (on flat ground) |
100kgs / 220lbs |
| Spoke Hole Angle | ±7° |
| Spoke Tension | 110~130kgf (recommended) |
| Max Tire Pressure | 60psi / 4.14bar (recommended max) |
| Min Tire Pressure | 25psi / 1.72bar (recommended min) |
| Tire Size | 2.1" ~ 2.7" (recommended) |
| Warranty | 5 years |
If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
