AM731 - 27.5er mtb all mountain 31mm internal 24mm deep carbon rim - 410g
Cross Country | Trail | 29er | 2.2" - 2.7" Tires | Symmetric | Rim
Product Item: AM731 - 27.5er mtb all mountain 31mm internal 24mm deep carbon rim - 410g
This 37mm-wide external and 24mm-deep 27.5er mountain bike carbon rim is truly one of the most sought-after shapes of carbon fiber MTB rims for all mountain ride. Its design and specifications have been meticulously crafted to meet the demanding requirements of avid mountain bikers. The combination of its width and depth provides excellent stability and handling, allowing riders to confidently navigate various terrains with ease.
Rim Specs
| Rim Model | AM731 |
| Material | Toray T700 & T800 premium carbon fiber |
| Size | 27.5" (650b) |
| Intended Use | All Mountain |
| Bead Type | Hookless |
| Tubeless Ready | Yes |

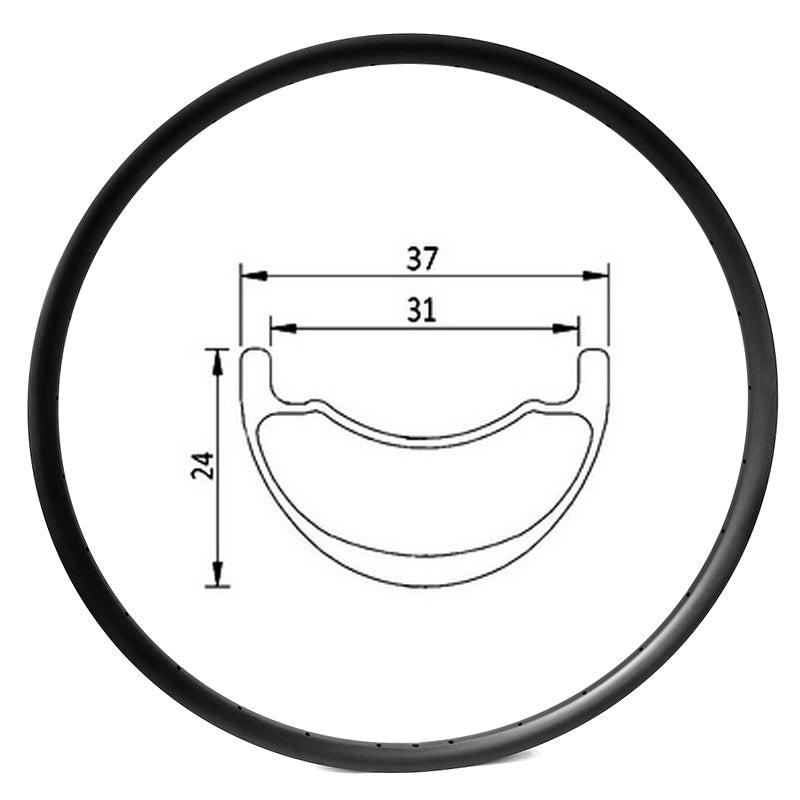

| Inner/Outer Width | 31mm/37mm |
| Depth | 24mm |
| ERD | 559mm (including nipple head dimension) |
| Weight | 410g±20 |
| Offset | 0mm (symmetric) |
|
Max Cyclist Weight (on flat ground) |
130kgs / 287lbs |
| Spoke Hole Angle | ±7° |
| Spoke Tension | 110~130kgf (recommended) |
| Tire Pressure | 45psi / 3.1bar (recommended max) |
| Tire Size | 2.2" ~ 3.0" (recommended) |
| Warranty | 5 years |
If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
