AM730X - 27.5er mtb 30mm internal width 25mm deep asymmetric carbon rim - 435g
Product Item: AM730X - 27.5er mtb 30mm internal width 25mm deep asymmetric carbon rim - 435g

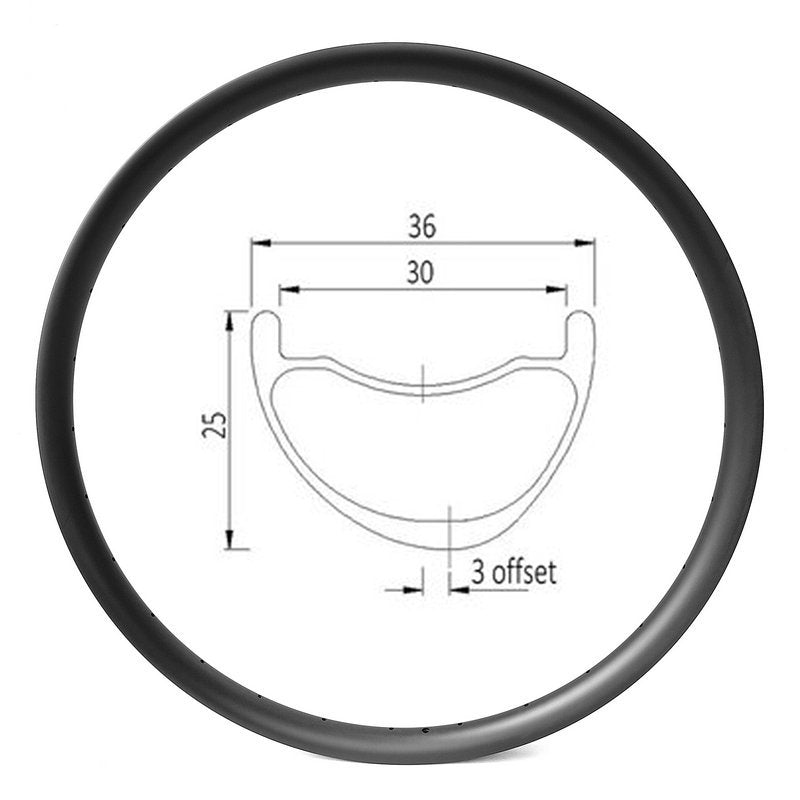

This 27.5" mountain bike carbon rim is tubeless compatible, with 30mm internal width and 25mm deep asymmetric 3mm offset rim profile, offers better sidewall support with modern wider tires, leading to less tire deformation and squirm, give you a more reliable tubeless fit, increased stiffness and durable, perfect for all mountain bike riders.
Rim Specs
| Rim Model | AM730X |
| Material | Toray T700 & T800 premium carbon fiber |
| Size | 27.5" / 650b |
| Intended Use | All Mountain |
| Bead Type | Hookless |
| Tubeless Ready | Yes |
| Inner/Outer Width | 30mm/36mm |
| Depth | 25mm |
| ERD | 557mm (including nipple head dimension) |
| Weight | 435g±20 |
| Offset | 3mm (asymmetric) |
|
Max Cyclist Weight (on flat ground) |
130kgs / 287lbs |
| Spoke Hole Angle | ±7° |
| Spoke Tension | 110~130kgf (recommended) |
| Tire Pressure | 45psi / 3.1bar (recommended max) |
| Tire Size | 2.2" ~ 2.7" (recommended) |
| Warranty | 5 years |
If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
