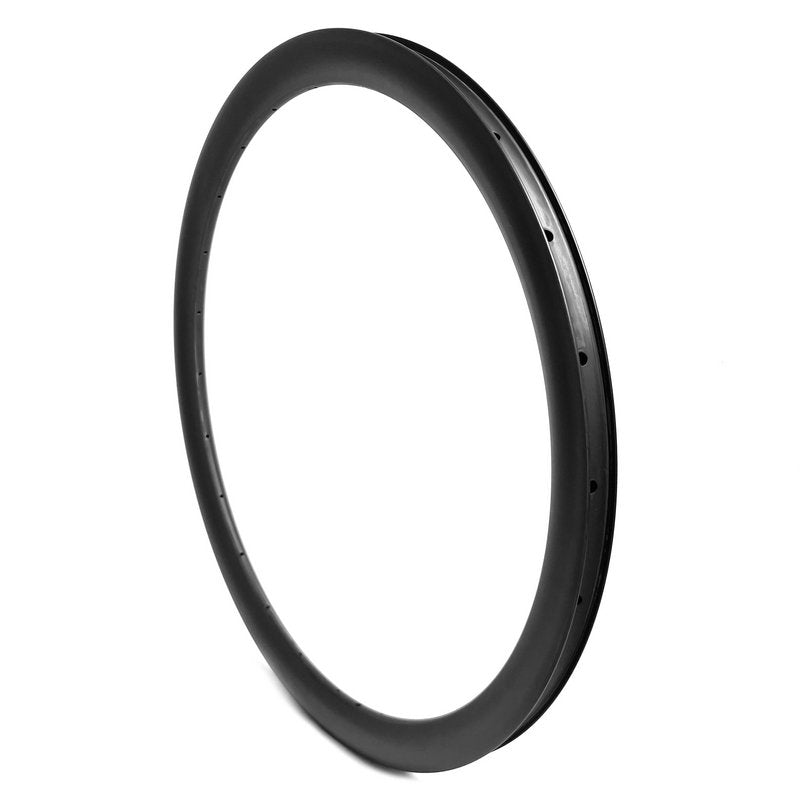

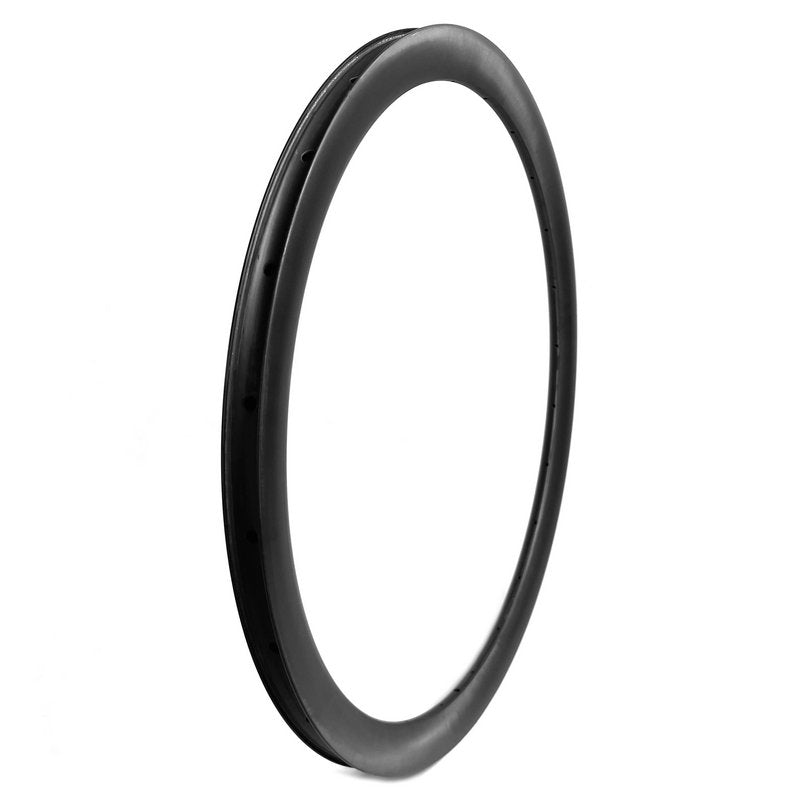

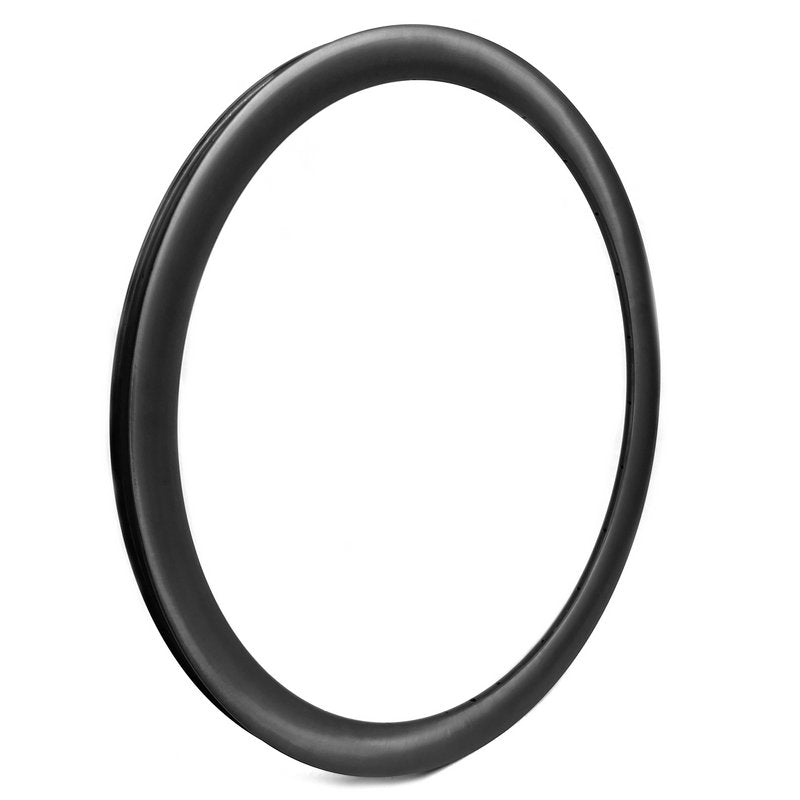

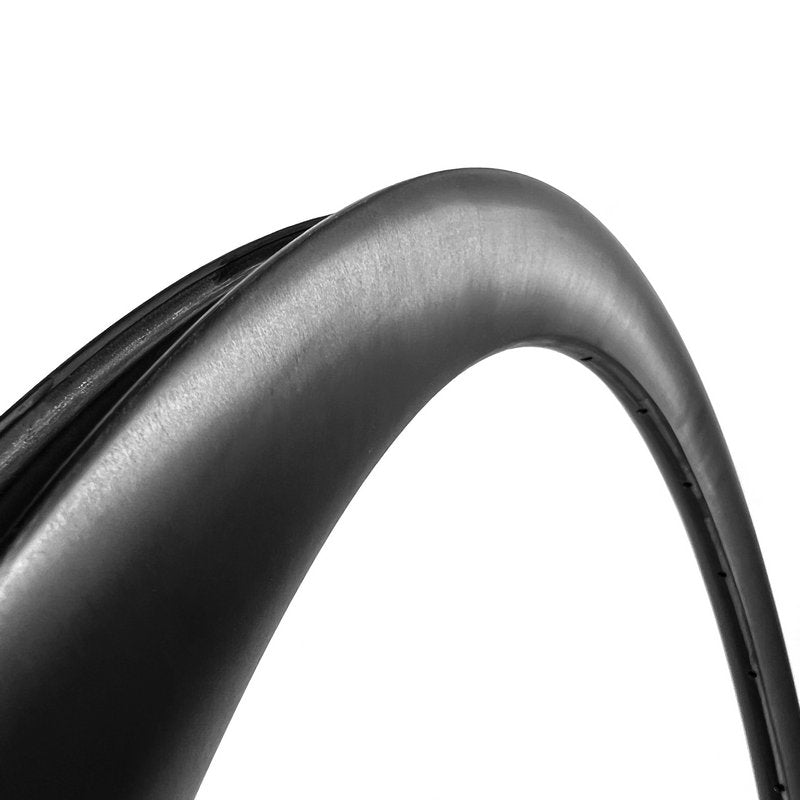

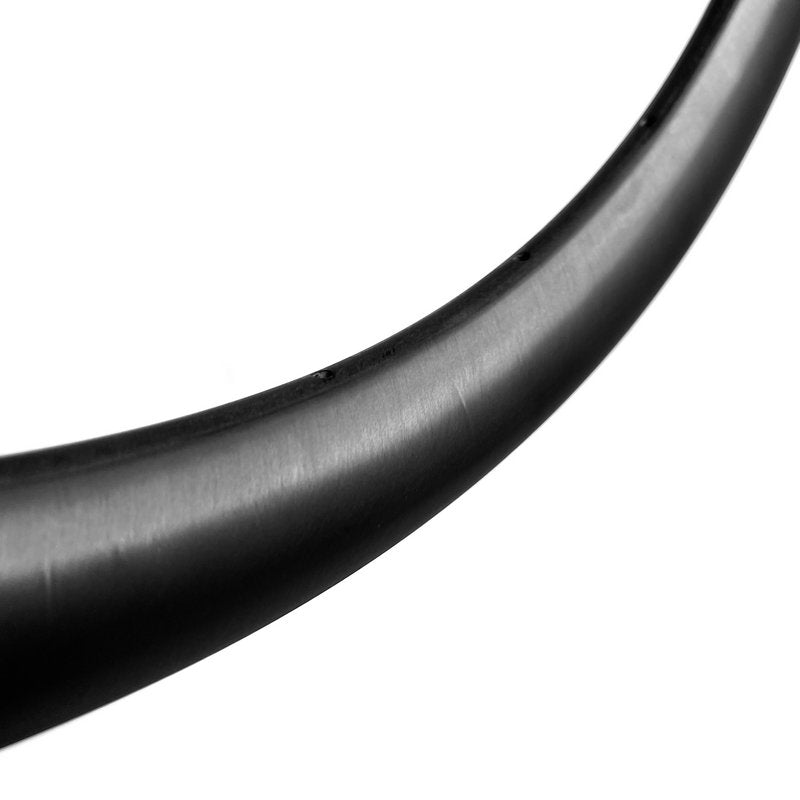

D23-40UL disc 700c road 23mm wide 40mm deep clincher carbon rim - 360g/390g
Road | Gravel | 700c | 25 mm - 50 mm Tires | Symmetric | Rim
Product Item: D23-40UL disc 700c road bicycle 23mm wide 40mm deep clincher carbon rim - 360g/390g
D23-40 ultra-lightweight rim featuring an inner width of 23mm and an outer width of 28.5mm, paired with a 40mm rim height, these rims are built using premium T1000 and T800 carbon fibers. This advanced material combination not only significantly reduces weight but also ensures exceptional rigidity for optimal performance. The highly sought-after 23mm inner width provides greater versatility in tire size selection.
Rim Specs
| Rim Model | D23-40/UL |
| Material | Toray T1000 & T800 premium carbon fiber |
| Size | 29" / 700C (ETRTO 622mm) |
| Intended Use | Road / Gravel |
| Bead Type | Clincher |
| Tubeless Ready | Yes |

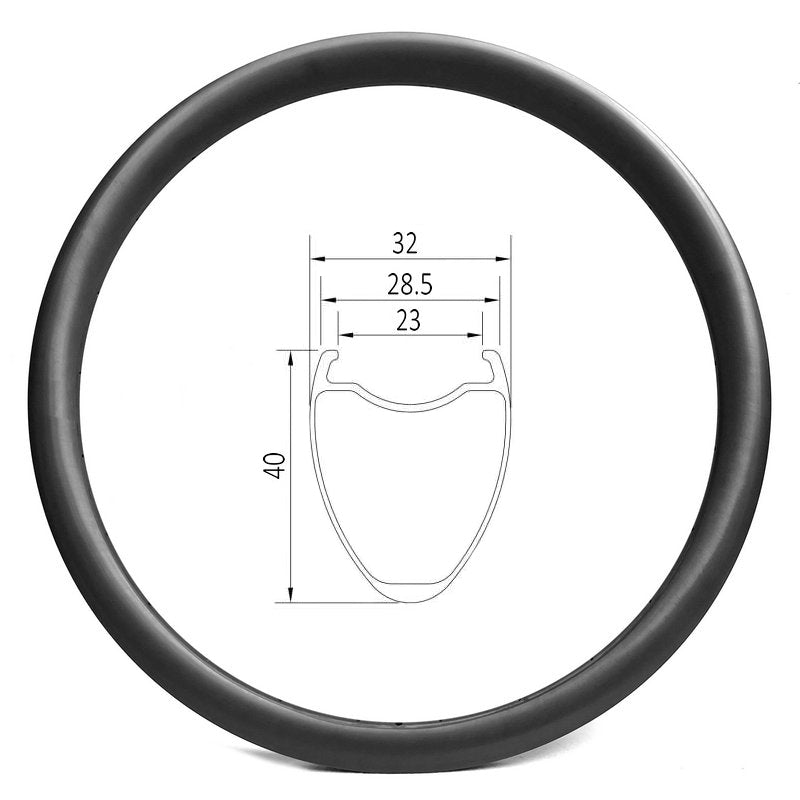

| Inner/Outer Width | 23mm/28.5mm (max width 32mm) |
| Depth | 40mm |
| ERD | 565mm (including nipple head dimension) |
| Weight | 390g±15 / 360g±15 (UL version) |
| Offset | 0mm (symmetric) |
|
Max Cyclist Weight (on flat ground) |
120kgs (265lbs) / 90kgs (198lbs) - UL version |
| Spoke Hole Angle | ±7° |
| Spoke Tension | 110~130kgf (recommended) |
| Tire Pressure (with 25C) |
110psi / 7.58bar (recommended max) |
| Tire Size | 25C ~ 50C (recommended) |
| Warranty | 5 years |
All wheels are 100% customizable at Carbonal Bike Factory. If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
