D24-33H - 700c gravel bike 24mm internal width 33mm deep hookless carbon rim - 350g
Gravel | Cyclocross | 700c/29" | 28mm - 50mm Tires | Symmetric | Rim
Product Item: D24-33H - 700c gravel bike 24mm internal width 33mm deep hookless carbon rim - 350g
Lightweight 350g hookless carbon rims for 700c gravel bikes. Featuring a 24mm internal width and 33mm deep profile, the D24-33H delivers superior strength, aerodynamics, and tubeless compatibility for off-road adventures.
Rim Specs
| Rim Model | D24-33H |
| Material | Toray T700 & T800 premium carbon fiber |
| Size | 29" / 700C (ETRTO 622mm) |
| Intended Use | Gravel / CX |
| Bead Type | Hookless |
| Tubeless Ready | Yes |

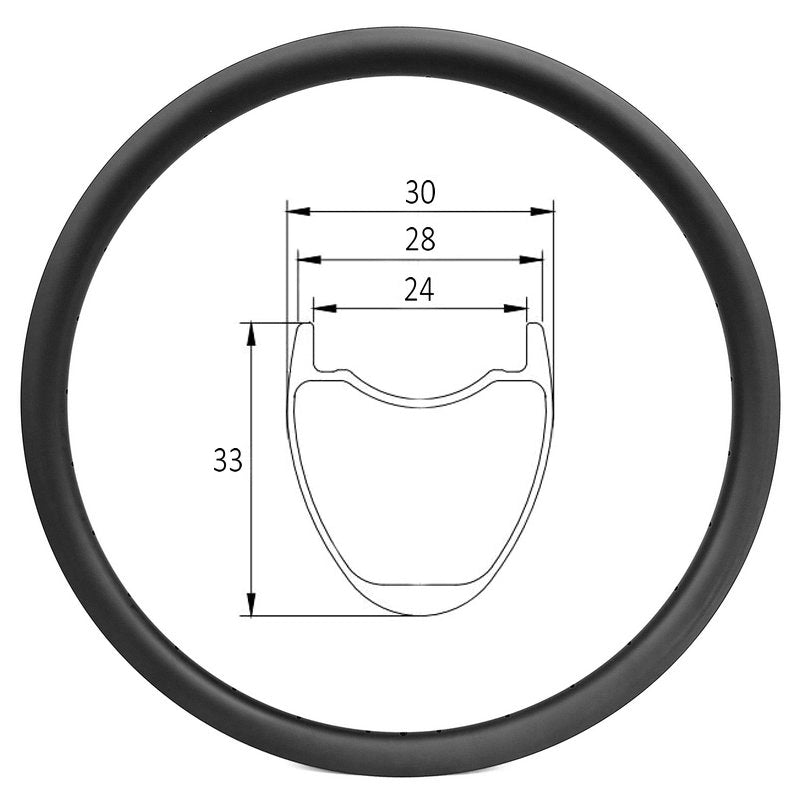

| Inner/Outer Width | 24mm/28mm (max width 30mm) |
| Depth | 33mm |
| ERD | 579mm (including nipple head dimension) |
| Weight | 350g±15 |
| Offset | 0mm (symmetric) |
|
Max Cyclist Weight (on flat ground) |
120kgs / 265lbs |
| Spoke Hole Angle | ±7° |
| Spoke Tension | 110~130kgf (recommended) |
| Tire Pressure (with 28C) | 65psi / 4.48bar (recommended max) |
| Tire Size | 28C ~ 50C (recommended) |
| Warranty | 5 years |
If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
